An HPLC column separates the components of a sample in time, but separation alone produces nothing visible. Something has to sit at the end of the column and record each component as it emerges. In the great majority of peptide methods that something is an ultraviolet (UV) detector, and the wavelength it most often watches is 214 nanometres. This entry explains, in neutral terms, what a UV detector measures, why 214 nm is chosen for peptides, and what the resulting signal can and cannot tell a laboratory.
Definition

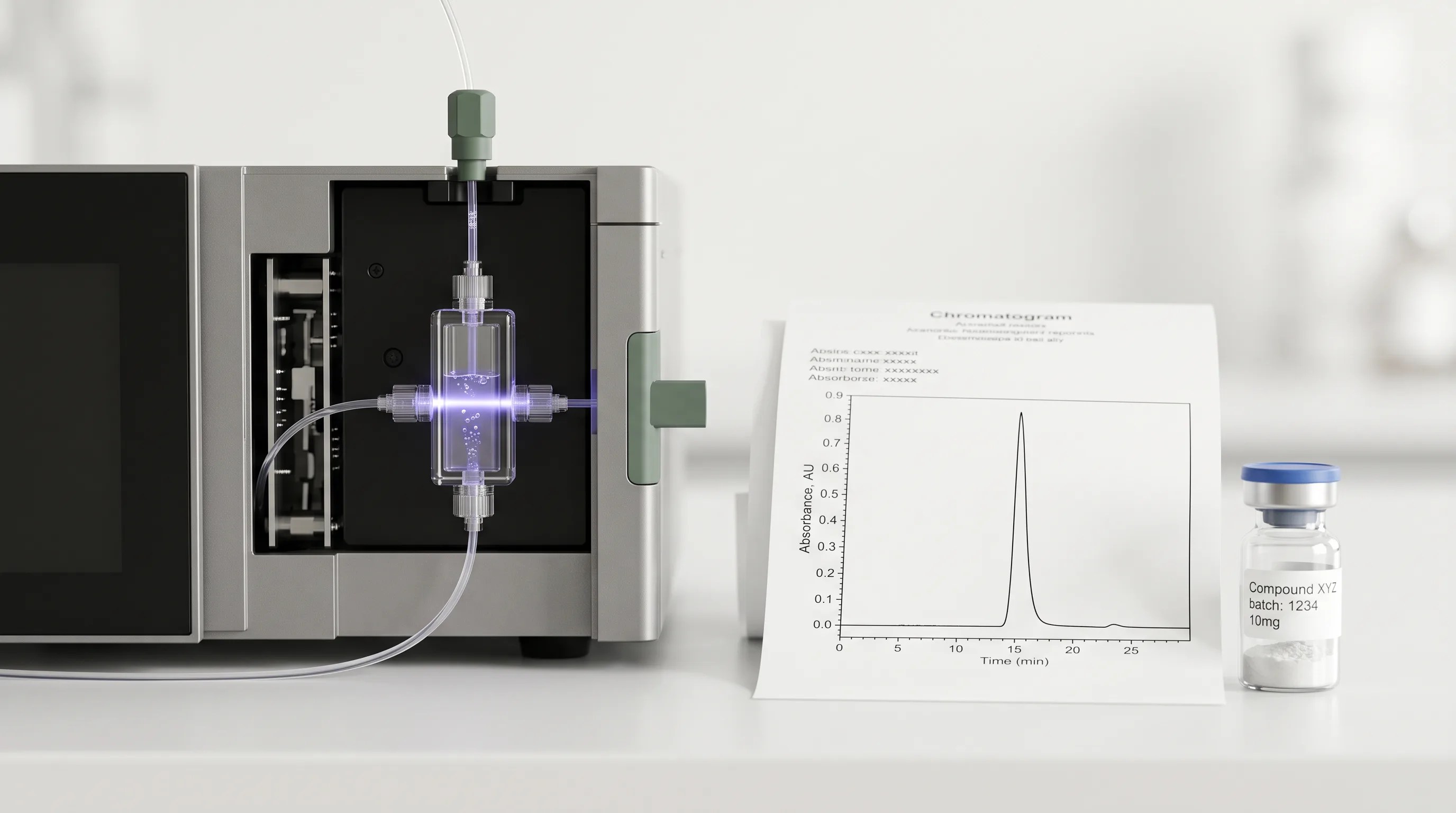

UV detection is the measurement of how much ultraviolet light a compound absorbs as it flows out of a chromatography column. The detector shines a beam of UV light of a chosen wavelength through a small transparent flow cell that the column effluent passes through, and continuously records how much of that light reaches a photodiode on the far side. When a compound that absorbs at the chosen wavelength passes through the cell, less light gets through; the detector registers that dip in transmitted light as a rise in absorbance, which becomes a peak on the chromatogram.
The vertical axis of a UV chromatogram is therefore absorbance, usually plotted in milli-absorbance units (mAU), against time on the horizontal axis. Every peak is a moment when an eluting compound absorbed the detector’s light. UV detection at 214 nm simply means the detector was set to watch that specific wavelength, which lies in the far-ultraviolet part of the spectrum.
Why 214 nm for peptides
The choice of wavelength is not arbitrary. It is chosen so the species of interest absorb as strongly as possible while background interference stays low. For peptides, the key absorbing feature is the peptide bond itself – the amide linkage that joins one amino acid to the next. The amide group absorbs strongly in the far ultraviolet, roughly between 190 and 220 nm, because of an electronic transition within the bond.
This matters because every peptide, regardless of its sequence, contains many peptide bonds. A wavelength that reads the peptide bond therefore responds to essentially any peptide, not only to those carrying particular side chains. A wavelength near the low end of the amide absorbance region (around 200-205 nm) gives an even larger signal, but it also picks up more absorbance from mobile-phase solvents and additives, which raises the baseline and makes the trace noisier. 214 nm is a widely used compromise: the peptide bond still absorbs well there, while common mobile-phase components interfere less than they do at shorter wavelengths.
| 214 nm (far UV) | Reads the peptide (amide) bond, present in every peptide – a near-universal peptide wavelength; strong signal, but more sensitive to solvent baseline |
|---|---|
| 280 nm (near UV) | Reads aromatic side chains (tryptophan, tyrosine, and to a lesser extent phenylalanine); only responds if the sequence contains those residues; cleaner baseline |
A second common wavelength, 280 nm, responds not to the backbone but to aromatic amino-acid side chains. Because not every peptide contains tryptophan or tyrosine, 280 nm is selective rather than universal – useful for confirming or quantifying specific residues, but unsuitable as a general peptide wavelength. This is why 214 nm (or a nearby far-UV wavelength) is the default for a peptide purity method, while 280 nm is a supplementary channel.
The Beer-Lambert relationship behind the signal
The link between how much compound is present and how much light it absorbs is described by the Beer-Lambert law: absorbance (A) is proportional to the molar absorptivity of the compound (the constant that expresses how strongly it absorbs at that wavelength), its concentration in the flow cell, and the path length of light through the cell. In shorthand, A = e c l.
Two consequences follow for reading chromatograms. First, within a working range, a larger amount of a given compound produces a proportionally larger peak, which is what makes peak area usable as a measure of quantity. Second, the proportionality constant differs from compound to compound: two different species present at the same concentration do not necessarily give the same absorbance, because their molar absorptivities differ. That distinction becomes important when interpreting what a UV peak’s size does and does not represent.
Fixed-wavelength, variable-wavelength and diode-array detectors
UV detectors come in a few forms that differ in how flexibly they select wavelengths:
- Fixed-wavelength detectors read one preset wavelength determined by the light source.
- Variable-wavelength detectors let the operator dial in a chosen wavelength, such as 214 nm, for a given method.
- Photodiode-array (PDA), also called diode-array (DAD), detectors record absorbance across a whole range of wavelengths at once. This lets a laboratory watch 214 nm and 280 nm simultaneously and also capture a full UV spectrum for each peak, which is an additional piece of characterisation evidence.
Whichever type is used, the principle is the same: UV light in, transmitted light measured, absorbance recorded against time.
What UV detection can and cannot tell you
UV detection is sensitive, stable, and non-destructive, which is why it is the workhorse detector for peptide HPLC. But its signal has clear limits, and understanding them is what keeps a chromatogram from being over-read.
- It sees only UV-absorbing species. Components that do not absorb at the chosen wavelength – many inorganic salts, some counter-ions, water – are effectively invisible to it. A clean UV trace confirms low UV-absorbing impurity content, not the absence of everything. This is one reason net peptide content is measured separately: non-absorbing material such as residual salts and water is not captured by a UV purity figure.
- It measures quantity, not identity. A peak’s position (its retention time) is a clue to identity and its area is a measure of amount, but neither proves what the molecule is. Confirming identity requires an orthogonal method – most often mass spectrometry, which measures the mass of the species under the peak.
- Area percent is not the same as mass percent. Because molar absorptivity varies between compounds, the area a peak occupies on a UV trace is not a direct readout of its mass fraction. HPLC purity is reported as area percent – the peak’s area as a proportion of total peak area – which is a convention, not an assay of absolute mass.
How it relates to a purity result
When a Certificate of Analysis lists an HPLC purity figure for a peptide, that figure is almost always derived from a UV chromatogram: the main peak’s area expressed as a percentage of the total area of all integrated peaks, at a stated wavelength. The related substances breakdown comes from the same trace – each smaller peak is an impurity that also absorbs UV light and is measured by its area. Knowing that these numbers come from UV absorbance at a specific wavelength is what makes them interpretable rather than abstract: the wavelength is part of the method, and it should be stated alongside the result.
How it appears on a COA and a chromatogram
On the chromatogram, UV detection is implicit in the y-axis label (absorbance, often with the wavelength noted, e.g. “214 nm”). On a Certificate of Analysis, the detection wavelength is typically recorded in the method summary for the HPLC assay, so that the purity and related-substances figures can be traced back to the exact conditions that produced them. A purity result quoted without its detection wavelength is missing part of the context needed to read it.
Why it is worth understanding
UV detection at 214 nm is the step that turns a chromatographic separation into numbers a laboratory can report. It works because the peptide bond absorbs far-UV light, which makes 214 nm a near-universal peptide wavelength; it is quantitative through the Beer-Lambert relationship; and it is bounded by two facts worth keeping in view – that it sees only UV-absorbing species and that it measures amount, not identity. Read alongside molar mass from mass spectrometry and a net-content assay, a UV purity figure sits in its proper place: one well-defined measurement among several that together describe a peptide sample.
Key takeaways
- UV detection measures how much ultraviolet light an eluting compound absorbs; the absorbance signal becomes the peaks on an HPLC chromatogram.
- 214 nm is a common peptide wavelength because the peptide (amide) bond absorbs strongly in the far UV, so it responds to essentially any peptide regardless of sequence.
- 280 nm reads aromatic side chains (tryptophan, tyrosine) and is selective rather than universal, so it supplements 214 nm rather than replacing it.
- The Beer-Lambert law links absorbance to concentration, which is why peak area can be used as a measure of quantity – but molar absorptivity differs between compounds, so area percent is not mass percent.
- UV detection sees only UV-absorbing species and measures quantity, not identity; non-absorbing material is measured by net content, and identity is confirmed by mass spectrometry.
Frequently asked questions
What is UV detection in HPLC?
UV detection is the measurement of how much ultraviolet light a compound absorbs as it flows out of a chromatography column. The detector passes a UV beam through a flow cell and records the drop in transmitted light when an absorbing compound passes through, plotting that absorbance against time as peaks on the chromatogram.
Why is 214 nm used for peptides?
The peptide bond – the amide linkage between amino acids – absorbs strongly in the far ultraviolet, around 190 to 220 nm. Because every peptide contains many peptide bonds, a wavelength that reads the bond responds to essentially any peptide. 214 nm is a widely used compromise: the peptide bond still absorbs well there, while mobile-phase solvents interfere less than they do at shorter wavelengths.
What is the difference between 214 nm and 280 nm detection?
214 nm reads the peptide backbone (the amide bond), so it responds to essentially all peptides and is used as a general wavelength. 280 nm reads aromatic side chains such as tryptophan and tyrosine, so it only responds when those residues are present. 280 nm is therefore selective and supplementary, while 214 nm is the near-universal default for peptide purity methods.
What is the Beer-Lambert law?
The Beer-Lambert law states that absorbance is proportional to a compound’s molar absorptivity, its concentration in the flow cell, and the path length of light through the cell (A = e c l). It is why a larger amount of a compound produces a proportionally larger peak within a working range, and why peak area can be used as a measure of quantity.
Why is HPLC purity reported as area percent rather than mass percent?
Because molar absorptivity differs between compounds, the UV absorbance of a peak is not a direct readout of its mass. HPLC purity is therefore expressed as area percent – a peak’s area as a proportion of the total integrated peak area – which is a convention based on the UV signal, not an assay of absolute mass.
What can UV detection not tell you?
UV detection sees only species that absorb at the chosen wavelength, so non-absorbing material such as many salts, some counter-ions and water is effectively invisible to it – which is why net peptide content is measured separately. It also measures quantity, not identity; confirming what a peak is requires an orthogonal method such as mass spectrometry.
What is a photodiode-array (PDA) detector?
A photodiode-array or diode-array (DAD) detector records absorbance across a range of wavelengths simultaneously, rather than at a single preset wavelength. This lets a laboratory monitor 214 nm and 280 nm at the same time and capture a full UV spectrum for each peak, which adds a piece of characterisation evidence beyond a single-wavelength trace.
